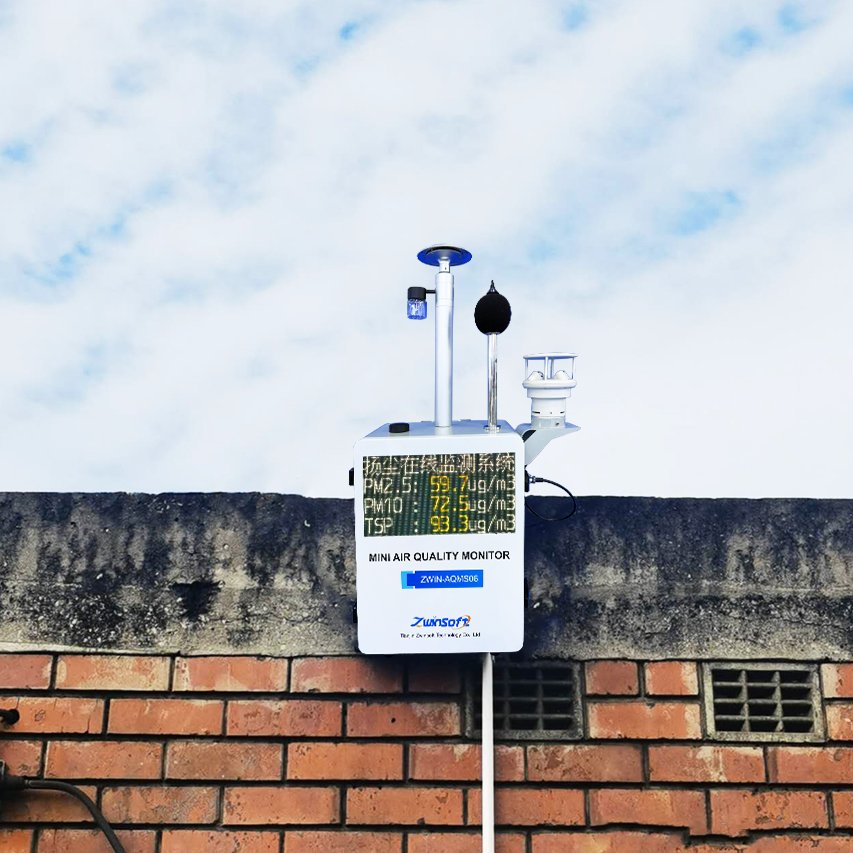

[New product recommendation] Zhiyi era dust online monitoring all-in-one machine
Product Description:
ZWIN-DUST06is a breakthrough product in the field of environmental monitoring. It combines traditional dust monitoring technology with modern design concepts to provide users with a more concise, efficient and easy-to-maintain dust monitoring solution.
This product can accurately capture the particle size distribution characteristics of PM2.5, PM10, TSP, etc. through laser scattering matrix sensor array, and simultaneously integrate high-precision weather station module to realize three-dimensional perception of environmental parameters such as temperature, humidity, air pressure, wind speed, wind direction, rainfall, illumination, etc.
Built-in industrial-grade edge computing unit supports local data preprocessingand transfers collected data information to intelligent cloud platform and terminal display screen. It is not only internally configured with LCD screen to support system operation, but also configured with color display screen outside the box to provide real-time viewing service.
At the same time, it is equipped with7× 24-hour self-diagnosis system to ensure stable operation of the equipment, with automatic dehumidification, concentration alarm, automatic zero correction, power-off protection and other functions.
Product Code:
ZWIN-DUST06
Main parameters:
· Monitoring factors: PM2.5, PM10, TSP, noise, wind speed, wind direction, temperature, humidity, atmospheric pressure (optional);
· Detection principle: light scattering principle;
· Detection range: 0~1000ug/m3(optional 0-2000ug/m3;0-10mg/m3;0-20mg/m3)
· Resolution: 0.1ug/m3
Features:
Integrated design: The product combines the monitoring core and the display screen into one, and displays the monitoring data in real time on the door panel of the product box, without additional LED display, simplifying the equipment structure and reducing the cost.
Real-time monitoring: Advanced laser scattering method is adopted to monitor the dust concentration in the air in real time to ensure the accuracy and timeliness of the data.
Intelligent operation and maintenance: support remote parameter configuration, firmware upgrade, fault diagnosis, configuration of automatic blowback cleaning system.
Field of application:
It is widely used in smart construction sites, port terminals, mine mining, road dust and other scenarios to meet the online supervision requirements of ecological environment departments for construction dust, transportation dust and yard dust. It is also applicable to the construction of environmental protection Internet of Things such as industrial parks, urban grid monitoring, traffic pollution hotspot traceability, etc., and supports intelligent linkage with spray dust suppression system, vehicle identification system and video monitoring system.
